Geo-RelNAV

Relative navigation between two or more moving platforms



Contact US
PDF SPEC SHEET

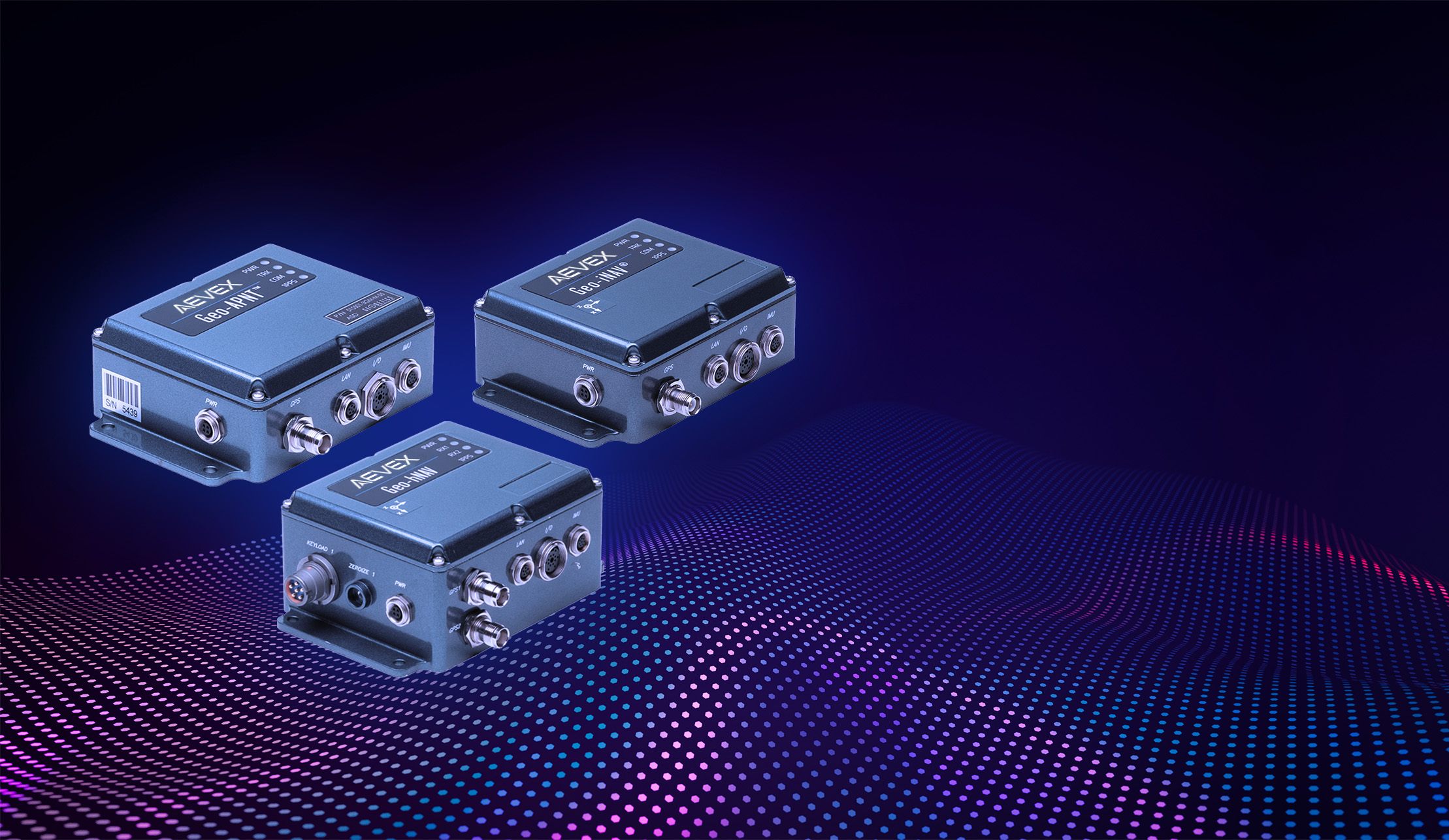

A UNIQUE GPS / IMU BASED NAVIGATION SYSTEM

The relative navigation information computed by Geo-RelNAV includes relative position, relative velocity (closure rate), and relative orientation. The Geo-RelNAV system works by transmitting data, through a data link, from the follower units to the leader unit where it is used in the relative computations. Geo-RelNAV provides a variety of ways to connect to a data link including via RS-232 and Ethernet and does not specify a data link type (i.e., TDMA) or operating frequency.

APPLICATIONS:

  • Probe & Drogue

  • Boom and Receptacle
  • Shipboard Landing



Benefits

  • Minimized sensor size and weight to meet payload restrictions
  • Available with different grades of IMU’s to support a wide range of application requirements
  • Aerial refueling applications: Probe- Drogue and Boom system
  • On-Board data logging of all sensors raw and navigation solution data.
  • The relative navigation can be provided between one leader and multiple followers
  • The system can be upgraded to vision-aided navigation for GPS-denied environments
  • Beside relative data, the system can also provide absolute PNT solutions of leader and multiple followers
  • Real time navigation and visualization tool for monitoring absolute and relative PNT data on leader and follower units
  • Additional aiding sensors, such as barometers, Altitude Heading and Refence Systems (AHRS), odometers, etc., can be integrated
  • Includes GPS antenna and cables
    • Anti-Jam Antennas are optional
  • Additional aiding sensors, such as barometers, Altitude Heading and Refence Systems (AHRS), odometers, etc., can also be integrated
  • VYO Real-Time Navigation Visualization Tool as convenient interface to visualize time, position, attitude and related information (TSPI) streamed data

Specifications

  • Size / Weight / Power:
    • 33.8 in (3.95×3.05×2.06) / 14.4 oz. / 10 – 30 VDC @ 2 amps
  • Temperature Range:
    • Specified: -20°C to +65°C
    • Operating: -40°C to +70°C
  • Real-Time Data Output:
    • Navigation solutions at up-to 125 Hz. available via Ethernet or RS-232
  • Data Recording/Logging:
    • Relative navigation solutions, absolute navigation solutions, raw GPS, IMU
  • Interfaces:
    • External power connector
    • TNC GPS antenna connectors
    • 1 Ethernet data port
    • 3 RS-232 serial ports
    • 1PPS output, 4 status LEDs
